CNCHK-5 CNC foam cutting machine is developed based on the CNCHK-2, with added vertical blade, which is used for simple 3D contour cutting. The contour cut parts by the foam cutter are a great alternative to die cut parts by foam die cutting machine. With high cutting accuracy and efficiency, both vertical and horizontal contour cutting can be realized by the foam cutter. In addition, this foam processing machine is also designed with cut-off and trimming unit, enabling it to be very versatile in the foam fabrication.
Contour Cutting Samples
Regular foam

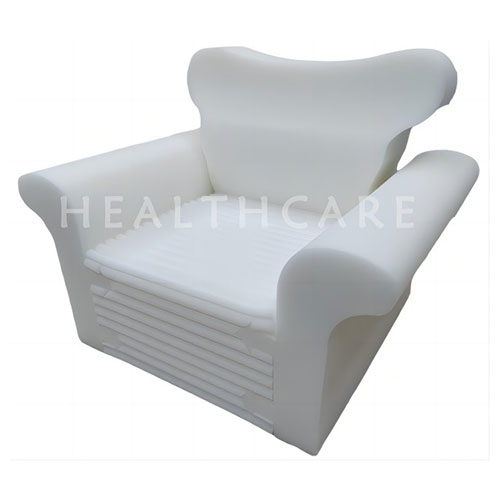

Upholstery foam
Latex foam pillow
Applications
Foam fabrication
Upholstered furniture
Mattress
Packaging
Automotive
Household
Materials
PU foam
High resilience foam
Memory foam
Latex foam
Rebond foam
Technical Data
Max. block size
3000*2200*1300mm
Toothed blade size
2500*3*0.6mm 1630*3*0.6mm
Cutting speed
0-6.3m/min
Accuracy
±0.5mm
Press roller
Yes
Operation system
Windows 7
Computer
Industry computer
Features
High cutting accuracy
Simple operation with state-of-the art control technology
Contour cutting of various foam types
Maximized material efficiency due to ZWCAD software in combination with Nesting function for an automated mode of operation.
CNC contour blades with long service life
Dust-free cutting: Foam is cleanly sliced, not abrasively cut, so there is no dust generated. A clean dust-free surface to the finished product is essential for mattresses, pillows and medical applications. This also helps keep a clean, safe workplace.
Can continue the cutting after break.
High-precision monitoring system ensure fully synchronization of motors, to avoid blade broken.
Standard
Servo protection device
Blade breakage alarm and blade protection device self-developed servo load detecting system, ensuring improved service life of the blade)
Self-diagnosis system
ZWCAD (available with commonly used keyboard shortcuts, automatic typesetting, one button for creating cutting path)
