CNCHK-1 is the first generation of CNC foam cutting machine in our company, and is also the first one in the Chinese foam contour cutting industry. This foam processing machine features simple operation and high cutting speed, which is widely used in the production of automobile parts, upholstered furniture, and mattresses, as well as in the packaging and insulation industries. With the development of CNC contour cutting technology, CNC contour cutter with blade becomes an outstanding alternative to wire CNC foam cutting machine. Although foam dust will be generated during the contour cutting, wire foam cutters are still the great contour cutting option in the foam production, because it's capable of cutting various foam materials including rigid PU foam, EVA, PE and PEE.

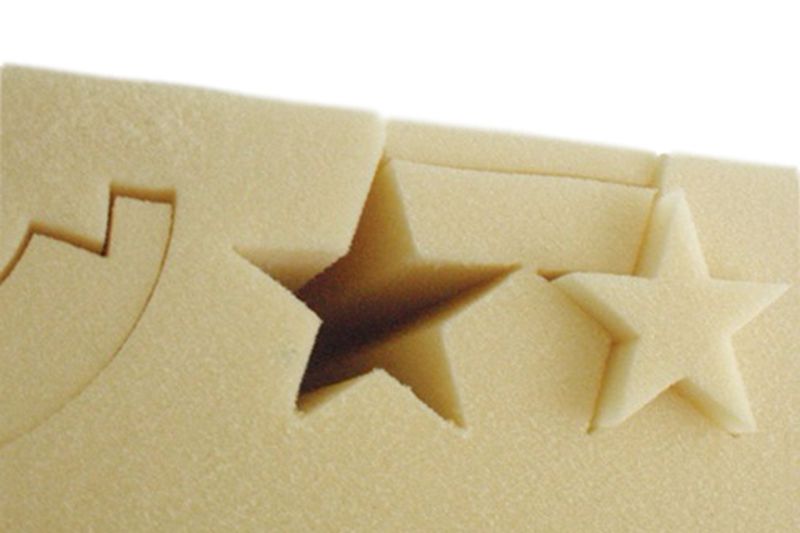

Contour Cutting Samples

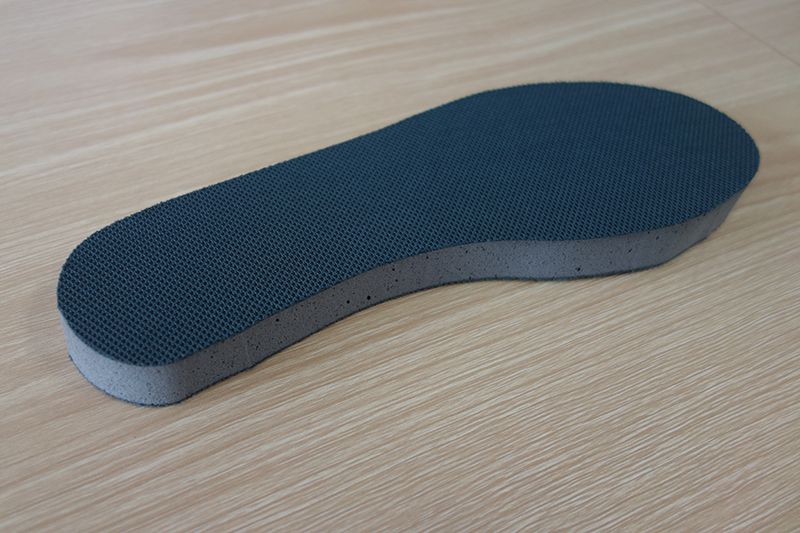

EVA insole
Rebond foam
Insulation material
Applications
Insulation materials
Sporting goods
Packaging
Materials
Rigid foam
Rockwool
Rebond foam
EVA
PE/EPE
Technical Data
Machine weight
2.4t
CNC Type
Industrial computer
Power supply
8kW, 380V, 50Hz
Control panel
LCD display
Machine dimensions
5000x3000x2800mm
Control module
Motion control card
Max. block size
2500x2100x1200mm
Operating system
Windows 2000 or upgraded version
Cutting wire size
10830x1.5mm
Programmable axis
X, Y, ψ
Speed of wheel
2800r/min
Stepper motor torque
20Nm
Cutting speed
0-6.3m/min
Mini. cutting radius
10mm
Tolerance
±0.5mm
Self-diagnostic function
Yes
Min. cutting thickness
5mm
Alarm for wire breakage
Yes
Features
The abrasive wire can cut through a variety of material types
Simple operation with state-of-the art control technology
Maximized material efficiency due to ZWCAD function in combination with Nesting function for an automated mode of operation.
High machine availability due to high quality parts with a long service life and easy access to spare parts.
